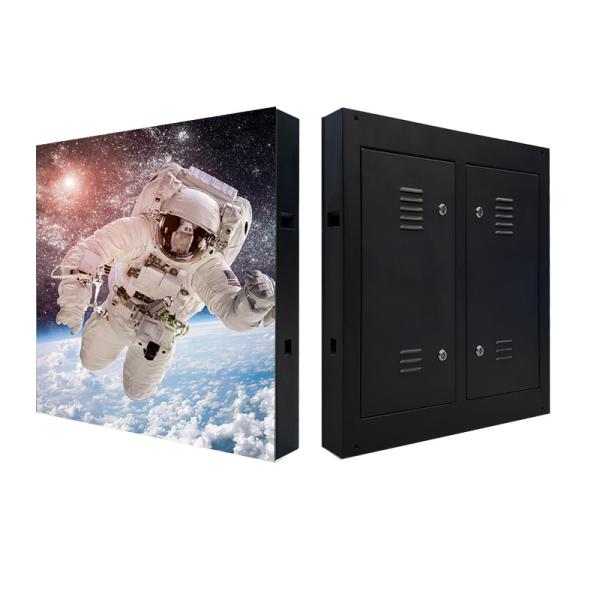

FM-B PH4 256x128 Customized Outdoor Waterproof Video Wall LED Advertising Screen
Detailed product introduction document:Outdoor fixed sheet metal box FM-B series.pdf
Applicable scenarios :
1. commercial real estate , stage performance
2. welcome display and restaurant
3. stage performance
4. Subway/Metro Station
5. Floor and Ceiling Display and Media Advertising
6. Commercial Plaza & Street
Features:
1. high permeability, high refresh and high gray scale
2. Arbitrary customization: can be customized into square, triangle, circle, cylinder (can be curved into arc) and other irregular shapes
3. good heat dissipation
4. ultra high brightness and High definition
5. Unique sealing and filling technology: sealing and filling technology not only protects the lamp beads, but also has a waterproof effect, and the waterproof level is as high as IP65
6. Support front and rear maintenance to reduce maintenance costs: the playback screen appears in a suspended style, which will not affect the building's lighting and vision.
7. Convenient installation method, convenient and fast: The cabinet adopts a quick-lock structure design, which makes installation convenient and fast
Product Details
Models: FM-B PH4
| Pixel Pitch (mm) | 4 | Maximum Power (W/㎡) | 1000-1200W |
| Pixel Density (dot/㎡) | 62500 | Conventional Power (W/㎡) | 400-600W |
| Module Pixel | 64x32 | LED Composition | RGB three in one |
| Module Size | 256x128 | Eliminate Shadows | Equipment |
| Refresh Rate (HZ) | 1920/3840 | Input Voltage | AC100～240V 50/60HZ |
| Scan Mode | 1/8 Scan | Module Input Voltage | DC4.7～5V±0.2V |
| Lamp Type | SMD1921 | Module Thickness(mm) | 15.6 |
| Brightness (cd/㎡) | 4500-7500 | Cabinet Size | Customized |
| Lifespan (hours) | ≥100,000H | Gray Scale | 14bit |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Installation | Magnetic installation / Cabinet installation |
Application:
Product Tags:
|
|
4500-7500cd/m² Stage LED Display Screen Outdoor LED Video Wall For Advertising Images
|
